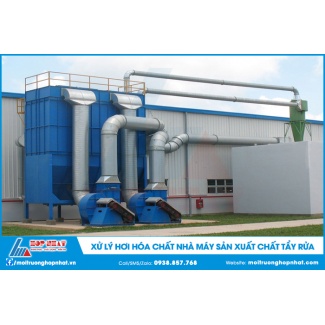

Chemical remedy system chemical manufacturing unit manufacturing unit

A manufacturing unit makes a speciality of producing cleansing chemical compounds and cleaning soap with a capability of 8,550 tons of merchandise/yr. Within the manufacturing course of, there may be emissions, steam solvents from the weighing and mixing. To be able to reduce the affect of chemical vapors on employees and the encompassing setting, the investor has put in The solvent steam remedy system by absorbing alkaline options and adsorbent with activated carbon. Invite you to the identical setting for reference to this method detailed info.

1. Supply generated and exhaust traits, steam solvents

Manufacturing course of on the manufacturing unit: Uncooked supplies> weighing uncooked supplies> stirring> tanks> filling> bottled/ packaging> completed merchandise, storage

The primary materials of the manufacturing unit contains chemical compounds contained in drums or luggage with a quantity of 5kg – 210kg bought from home and international companies.

The 2 levels of producing emissions are weighing supplies and stirring, during which the stirring exercise is principally.

Stirring: The components after being opened/open the packaging will probably be pumped by the employees to pump into the fabric mixing tanks with water. The components are blended collectively to type a homogeneous combination. The blending tanks used on the manufacturing unit are closed mixing tanks. At this stage, emissions, wastewater and noise.

Traits and contaminants of emissions and solvents:

• Natural solvent: Is a risky natural compound (VOC) with a attribute chemical odor, usually uncomfortable if not dealt with properly, risky at room temperature, which may trigger respiratory irritation, headache, dizziness if accrued within the air.
• Chemical mudN: From weighing actions, powdered chemical compounds comparable to soda, tripolyphosphate, sodium sulfate … Small particle dimension, simple to unfold within the air.

Briefly, the emissions and steam of solvents from detergent factories should be properly managed and managed in order to not trigger lengthy -term results on employees' well being and have an effect on the encompassing setting, particularly residential areas.

2. Vapor remedy system chemical manufacturing unit manufacturing unit

Emission, odor, chemical vapor from the blending strategy of components are collected by means of the suction capturing in accordance with the quick pipeline gathering to the absorption tower below the suction pressure of the exhaust fan.

Chemical vapor remedy system Activated carbon is designed with a system capability of 12,000m3 /h to make sure the flexibility to deal with the whole vapor of chemical compounds generated from the blending stage.

Chemical steam remedy course of

Emissions> Suction caps> pipes> absorbing 10% NaOH answer> Moisturizing materials> adsorbing tower (activated carbon)> exhaust pipe

Processing course of

Throughout the manufacturing course of, the manufacturing unit makes use of 10 uncooked supplies blended with 0.5m diameter; Subsequently, the investor has organized 10 suction capturing with a dimension of 1m x 1m above the closed operation.

The chemical vapor from the loading course of to the blending tank is taken to draw the gathering of the gathering pipeline to the absorption tower. The absorbing answer right here will use 2 traces of alkaline and acidic answer. Within the absorption tower putting in pH management gear.

After the emissions are absorbed, a part of the mud and pollution are retained, the chemical vapor after the moisture separation materials will proceed to undergo the tower to deal with by activated carbon to adsorb the remaining chemical vapor. Activated carbon is a substance that’s primarily a carbon component with a really typical honeycomb type. Due to this construction, in 1g activated carbon, the floor space of ​​all pore can attain 800 – 1300m2 /g, so activated carbon has very sturdy adsorption.

After a interval of operation, the adsorbent pollution fill the voids of activated carbon, then the investor will exchange this activated carbon to make sure the adsorption capability of the processing system.

– The consumption of absorption supplies: 10% NaOH answer utilizing 0.5kg/time; Activated carbon makes use of 40kg/time. The frequency of activated carbon substitute each 3 months.

– Chemical substances, catalysts Used on the adsorbent tower is NaOH alkaline answer, activated carbon.

3. Specs of the chemical steam remedy system with a capability of 12,000m3/h

Above is a few details about the chemical processing system of the detergent manufacturing unit. In case you are in want of recommendation, design and Putting in emissions remedy system For your corporation, you may contact immediately Zalo/Hotline 0938.857.768 Or ship a value provide to the value E mail: congthongtin@moitruonghopnhat.com.
