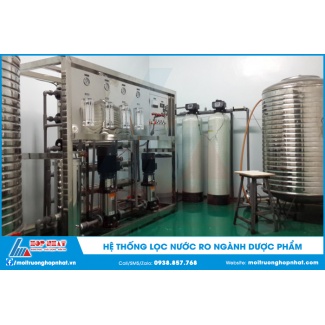

A manufacturing unit makes a speciality of producing prescription drugs and practical meals with a capability of 1,200 tons/yr. With the traits of drug manufacturing and laboratory manufacturing corporations, the manufacturing unit wants to make use of pure clear water to serve manufacturing actions and evaluation, experimental analysis, so the manufacturing unit has put in RO water filtration system of designed capability of 2m3/h. Within the following content material, please confer with detailed details about RO 2M3/h water filtration system.
1. Actions want to make use of water on the manufacturing unit
On the manufacturing unit, many actions want to make use of clear water, together with:
– Water provide for day by day -life actions;
– Water provide as manufacturing supplies;
– Water provide for the operation of the boiler;
– Water granted for the hand washing staff earlier than coming into the manufacturing space.
– Water granted for the operation of the laboratory and product improvement analysis middle.
– Water provide for filter washing of the water remedy system.
– Water granted for the aim of washing labor costumes.
– Water granted to the experimental emissions remedy system, analysis and product improvement rooms.
– Water supplying water loss for cooling system, cooling tower.
– Water ishing equipment, gear, manufacturing instruments.
– Water equipped to watering crops.
2. Pharmaceutical water filtration system
Please confer with details about Pharmaceutical water filtration system With a capability of 2m3/h proper right here.
2.1. Know-how course of
Water provide> Water tank> Uncooked filtering column> Filter column> Softens water column> Mushy water tank> RO filter system> Mixbed column> filter column 0.2µm> RO water tank> UV gentle
2.2. Rationalization of expertise diagrams
Water remedy technique of pharmaceutical water provide completed as follows:
– Uncooked filter column: Water provide from the primary export processing zone is pumped into tough filter columns. With the coal filter materials, sand and gravel permits to retain massive suspended sediments and a few impurities can have an effect on the filtration course of. Uncooked filter columns should be cleaned recurrently and totally, to take away the grime removing after a interval of use (about 1 week).
– Filter column: After tough filtration, water is put into the filter column. Within the filter column containing activated carbon has the position of sediment dimension> 5μm in water. Stop some chemical substances (comparable to chlorine) that tough filter can’t be dealt with. Periodic filtering supplies should be filtered to keep away from congestion, activated carbon will be reverted to reuse.
– Water softening column: After the water by this refinery column, one turns by the alternate of softening. Cation grain alternate column works on the precept of ion alternate. When laborious water flows by the filter materials containing cation seeds. Ca2+, Mg2+ ions in laborious water will alternate cation on the seed floor. Ca2+, Mg2+ ions in water will probably be changed by well being advantages. The ion alternate resin after about 1 yr of use will probably be changed, the Firm doesn’t revert these plastic particles, presently the ion alternate resin will probably be delivered to the unit with the processing perform.
– The water tank has been softened: Water after passing by the water softening system will probably be saved in a tank with a quantity of V = 2000 liters. This water tank is accountable for supplying water to reverse osmotic filter (RO) with a pump system.
– RO filtration system: Is a water filtration expertise utilizing semi -absorbent movie. In distinction to the standard osmotic course of, RO expertise with excessive pace and strain, the water circulation constantly on the RO membrane floor and signifies the water molecules by the filter holes, impurities will probably be retained, eradicating most natural, heavy metals, inorganic, micro organism and viruses. 50% of water after by the RO filtration system is carried out by the mixside column; The remaining 50% return to the unique water tank for reuse together with the brand new quantity of water.
– Column combine mattress: After the RO machine, the water continues to be led by the mixside column. Mixbed is a blended ion alternate resin, which is mixed between robust acid cation alternate resin with robust anion basa alternate resin. With excessive ion alternate price, low uniformity coefficient, good mechanical abrasion resistance, chemical and bodily stability, the Mixbed column totally reduces the ions within the water. Periodically about 1 yr the corporate will change the ion alternate plastic particles, presently the outdated ion alternate resins will probably be delivered to the unit with the processing perform.
The water after processing the mixside column is carried out by a 0.2µm filter column used to take away impurities and particles within the water with a dimension of greater than 0.2µm.
– RO water tank: Water after processing the mixside column is led to RO water tank. After a interval of storing water within the tank, the underside layer of water can produce some micro organism, so it is going to periodically discharge the underside and lead the circulation by the warmth alternate system to remove this micro organism. Water after the warmth alternate cluster results in RO water tank.
– UV mat: Earlier than the water provide to the use factors, the water is handed by UV lights to sterilize the remaining micro organism.
Above is a few details about RO water filtration system with a capability of 2m3/hour. Not solely within the manufacturing unit of pharmaceutical and well being factories, RO water filtration system can also be utilized in different fields.
Companies wishing to seek the advice of, design, set up Industrial RO water filtration system / Water remedy systemPlease contact Hotline: 0938.857.768 For extra detailed info recommendation on prices or expertise.
